dht11/dht11.h



#ifndef dht11_h
#define dht11_h

#if defined(ARDUINO) && (ARDUINO >= 100)
#include <Arduino.h>
#else
#include <WProgram.h>
#endif

#define DHT11LIB_VERSION "0.4.1"

#define DHTLIB_OK				0
#define DHTLIB_ERROR_CHECKSUM	-1
#define DHTLIB_ERROR_TIMEOUT	-2

class dht11
{
public:
        int read(int pin);
	int humidity;
	int temperature;
};
#endif
//
// END OF FILE
//

dht11/dht11.cpp

//
// FILE: dht11.cpp
// VERSION: 0.4.1

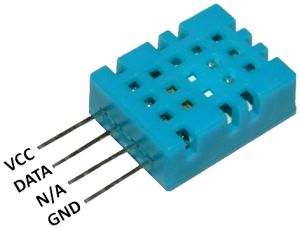

// PURPOSE: DHT11 Temperature & Humidity Sensor library for Arduino
// LICENSE: GPL v3 (http://www.gnu.org/licenses/gpl.html)
//
// DATASHEET: http://www.micro4you.com/files/sensor/DHT11.pdf
//
// HISTORY:
// George Hadjikyriacou - Original version (??)
// Mod by SimKard - Version 0.2 (24/11/2010)
// Mod by Rob Tillaart - Version 0.3 (28/03/2011)
// + added comments
// + removed all non DHT11 specific code
// + added references
// Mod by Rob Tillaart - Version 0.4 (17/03/2012)
// + added 1.0 support
// Mod by Rob Tillaart - Version 0.4.1 (19/05/2012)
// + added error codes
//

#include "dht11.h"

// Return values:
// DHTLIB_OK
// DHTLIB_ERROR_CHECKSUM
// DHTLIB_ERROR_TIMEOUT
int dht11::read(int pin)
{
	// BUFFER TO RECEIVE
	uint8_t bits[5];
	uint8_t cnt = 7;
	uint8_t idx = 0;

	// EMPTY BUFFER
	for (int i=0; i< 5; i++) bits[i] = 0;

	// REQUEST SAMPLE
	pinMode(pin, OUTPUT);
	digitalWrite(pin, LOW);
	delay(18);
	digitalWrite(pin, HIGH);
	delayMicroseconds(40);
	pinMode(pin, INPUT);

	// ACKNOWLEDGE or TIMEOUT
	unsigned int loopCnt = 10000;
	while(digitalRead(pin) == LOW)
		if (loopCnt-- == 0) return DHTLIB_ERROR_TIMEOUT;

	loopCnt = 10000;
	while(digitalRead(pin) == HIGH)
		if (loopCnt-- == 0) return DHTLIB_ERROR_TIMEOUT;

	// READ OUTPUT - 40 BITS => 5 BYTES or TIMEOUT
	for (int i=0; i<40; i++)
	{
		loopCnt = 10000;
		while(digitalRead(pin) == LOW)
			if (loopCnt-- == 0) return DHTLIB_ERROR_TIMEOUT;

		unsigned long t = micros();

		loopCnt = 10000;
		while(digitalRead(pin) == HIGH)
			if (loopCnt-- == 0) return DHTLIB_ERROR_TIMEOUT;

		if ((micros() - t) > 40) bits[idx] |= (1 << cnt);
		if (cnt == 0)   // next byte?
		{
			cnt = 7;    // restart at MSB
			idx++;      // next byte!
		}
		else cnt--;
	}

	// WRITE TO RIGHT VARS
        // as bits[1] and bits[3] are allways zero they are omitted in formulas.
	humidity    = bits[0];
	temperature = bits[2];

	uint8_t sum = bits[0] + bits[2];

	if (bits[4] != sum) return DHTLIB_ERROR_CHECKSUM;
	return DHTLIB_OK;
}
//
// END OF FILE
//

测试程序

#include <dht11.h>                                 //引用dht11库文件，使得下面可以调用相关参数
#define DHT11PIN 2                                             //定义温湿度针脚号为2号引脚
dht11 DHT11;                                                       //实例化一个对象

void setup() {                                                       //设置
    Serial.begin(9600);                                            //设置波特率参数
    pinMode(DHT11PIN,OUTPUT);                       //定义输出口
}

void loop() {                                                    //循环
    int chk = DHT11.read(DHT11PIN);                 //将读取到的值赋给chk

    int tem=(float)DHT11.temperature;               //将温度值赋值给tem
    int hum=(float)DHT11.humidity;                   //将湿度值赋给hum

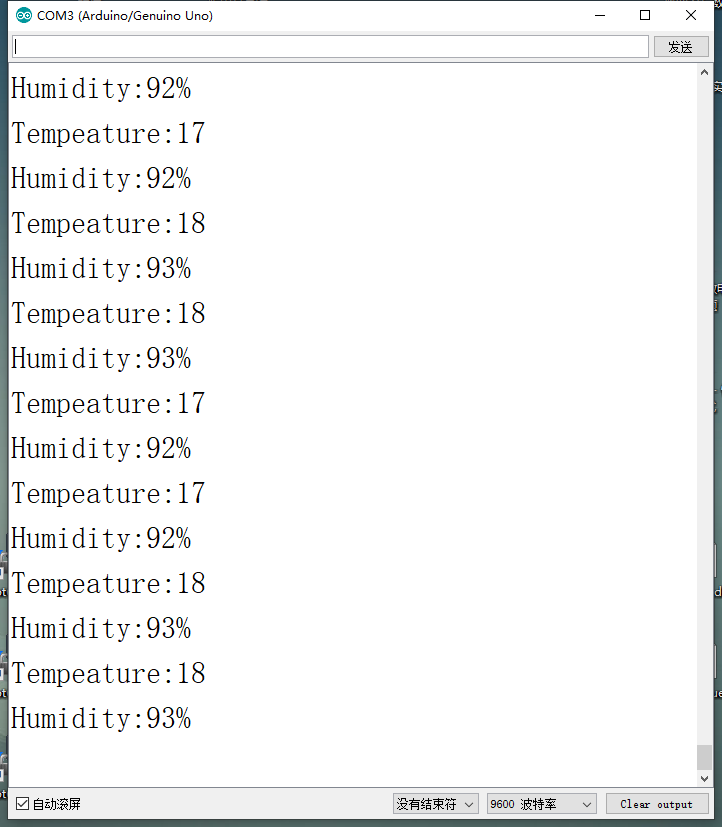

    Serial.print("Tempeature:");                        //打印出Tempeature:
    Serial.println(tem);                                     //打印温度结果

    Serial.print("Humidity:");                            //打印出Humidity:
    Serial.print(hum);                                     //打印出湿度结果
    Serial.println("%");                                  //打印出%

    delay(1000);                                          //延时一段时间
}

下一次写一个lcd1602驱动？？？
